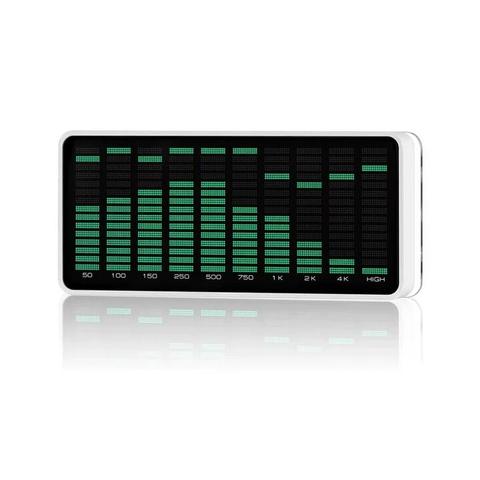

AK1016 Music Spectrum Dual-Power Port Multi-Band LED Display Adjustable Audio Spectrum Analyzer with 3.5mm AUX Input

Specification Model AK1016Product Name Dual Input Audio Music Spectrum LED Display Display High brightness LED dot matrix spectrum panelFrequency Bands 50Hz 4kHz multi band display marked 50 100 150 250 500 750 1K 2K 4K HIGH Inputs 3 5mm AUX audio input low level signal Built in microphone pickup MIC Power Supply DC 5V via USB Type C portControl Keys UP DOWN OK function buttons on side boardAdjustable Parameters Brightness main beam fall speed peak hold time peak fall speed display modeDisplay Modes Real output modesmooth output mode with AGC algorithmMemory Function Remembers last settings after power offShell Material Acrylic front cover plastic rear housingDimensions 110 x 50 x 20 mm 4 33 x 1 97 x 0 79 inNet Weight 100 g 0 22 lbFeatures 1 Dynamic Music Visualization Multi band LED bars move with the rhythm showing clear real time spectrum from 50Hz to 4kHz 2 Dual Signal Input Supports direct 3 5mm AUX connection and microphone pickup suitable for speakers PCs TVs mixers and live music 3 Smart AGC Algorithm Automatic gain control keeps a full and balanced display under both low and high input levels 4 Multi Adjustable Display Independent setting of brightness fall speed hold time and two output modes to match different listening scenes 5 Easy Plug and Play Standard USB Type C 5V power and 3 5mm audio interface simply connect and use no driver required 6 Compact Desktop Design Slim 110x50 mm body with tr
