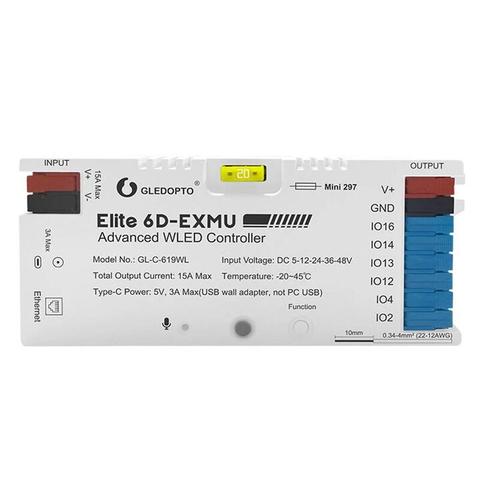

GLEDOPTO GL-C-619WL Elite 6 Channel WLED Digital LED Strip Controller DC 5-48V 15A Max Ethernet WiFi PDM Microphone Musi

Specification Brand GLEDOPTOModel No GL C 619WLInput Voltage DC 5 12 24 36 48VTotal Output Current 15A MaxInput Current 15A MaxType C Voltage 5VDC Type C Current 3A MaxIP Rate IP20Material Flame Retardant PCSize 129x50x23mmOperating Temperature 20 45℃N W 76 8gG W 112 1gFeatures 1 Plug to Play with Pre configured WLED Program No gateway required simple operation Control via WLED APP or PC Web colors effects segments and presets with over 100 dynamic effects to choose from 2 6 Digital Output Channels One controller easily connects and controls up to 6 addressable LED strips Supports segmented color control to personalize every strip segment and multi device lighting sync on the same WiFi network 3 Ethernet Port with Crystal Oscillator WiFi 2 ways to connect to the network The Ethernet function is configured by default just plug in the network cable and control it via APP without configuring WiFi 4 Built in Energy Saving Relay When the power is turned off no current passes through the LED strip effectively reducing standby power consumption 5 PDM High Sensitivity Mic Compared with analog mic it offers higher sensitivity and faster response time Music sync function is configured by default ready to use once powered on 6 SafeUser Friendly Design 20A pluggable fuse for overload protection reliable 75° quick connect Wago terminals excellent heat dissipation hole design all in one function button short press on off 1s long p
