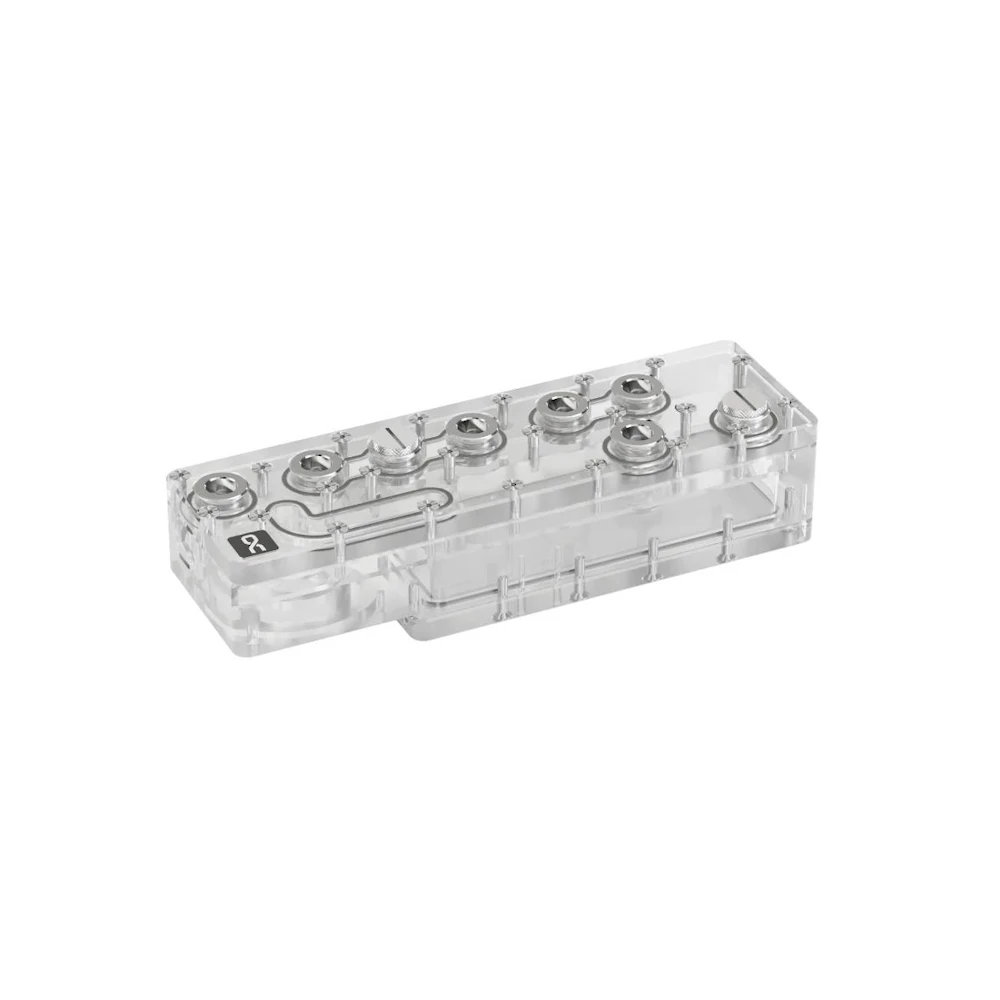

Alphacool Core Distro Plate 240 XS D5/DDC

Brand:Alphacool

Alphacool Core Distro Plate 240 XS D5/DDC

Price $295 was$369 Price dropped20%

Sold by PLE In stock

Lowest tracked price

Down from $369 on 13 NovTracking since 25 Oct

Price updated yesterday Price history

Buy at PLE

We may earn a commission at no cost to you. How it works

Price history

Tracking since 25 Oct · 22 days

Now
$295
Lowest
$295
Highest
$369
Price changes
  1. down↓20% 3 days ago $295
  2. First recorded 25 Oct $369

About this product

Brand
Alphacool
Store
PLE
Category
Electronics > Electronics Accessories > Computer Components > Computer System Cooling Parts > Water Cooling Components
SKU
PLE-678808

The Alphacool Core Distro Plate 240 XS is an absolute must-have for any custom water cooling setup! Unlike previous Core Distro Plates, it features a slimmer, more space-saving design. With its signature Core design, it’s not only a visual highlight, but also a functional masterpiece that simplifies the planning and installation of complex cooling loops.

Thanks to a redesigned pump mount, this distro plate supports the installation of both VPP/D5 and DDC pumps, offering even greater flexibility for custom loop configurations.

The Distro Plate is made of high-quality acrylic and fitted with chrome-plated G1/4” brass connections. These have been recessed and deliberately not screwed in to minimise the risk of cracks and leaks while increasing stability. This not only ensures absolute leak proofing of each connector, but also allows for the clean and functional look of Alphacool's Core Design series.

The arrangement of the connections is designed not only to optimise tube routing, but also to provide an attractive appearance. This is complemented by its integrated ARGB lighting, which provides impressive visual effects. The lighting can be controlled via an ARGB header on the mainboard.

The Core Distro Plate is compact in design, making it ideal for custom water cooling configurations. Additional drain ports located on the side and bottom allow for quick and clean draining of the distro plate.

Installation is carried out using the included 90° universal mounting bracket, which enables easy and flexible positioning within the case.

Technical Data

  • Dimensions: 240 x 73 x 59.6mm
  • Material: Acrylic (and brass thread)
  • Pump compatibility: D5/VPP | DDC
  • Threads: 11x G1/4" (1x fill port and 2x drain port)
  • Volume: 147ml
  • Maximum working temperature: 60°C
  • Pressure tested: 0.8 Bar
  • ARGB Type: 5V 3-pin
  • Weight: 1074g
