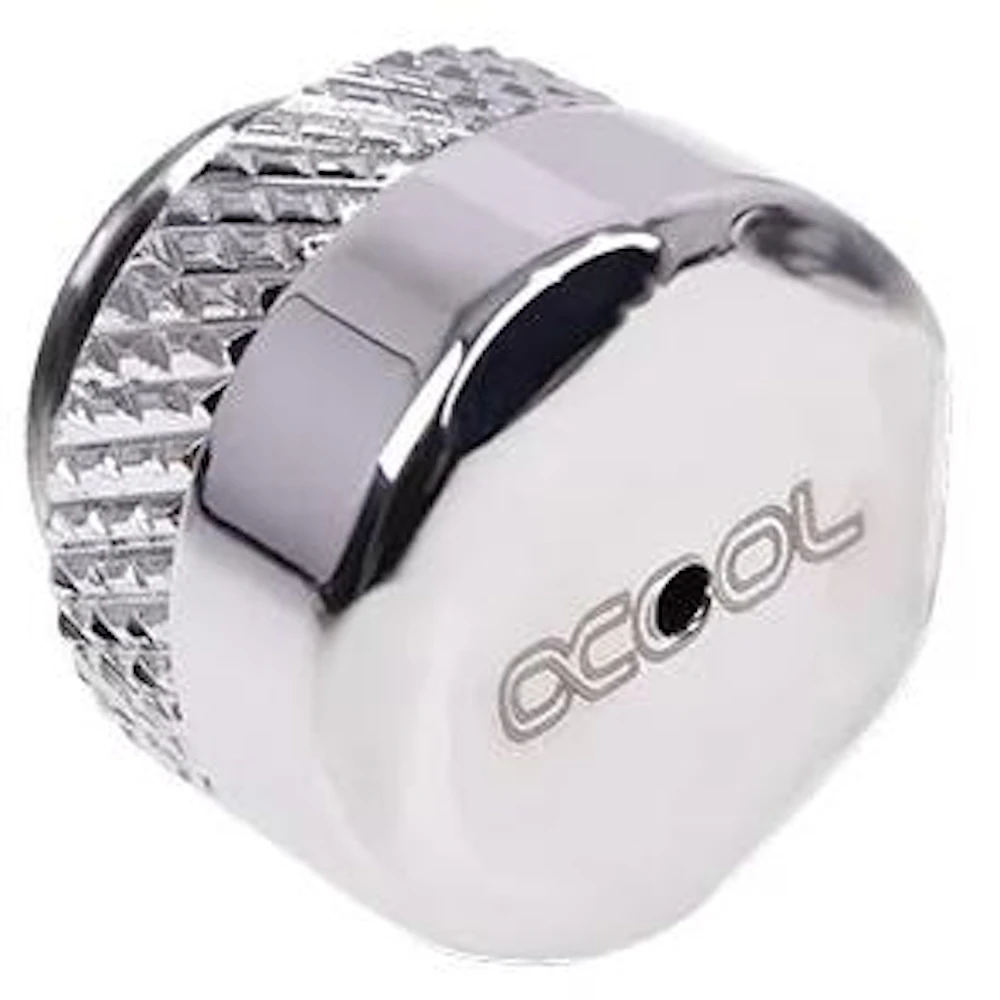

Alphacool Eiszapfen G1/4" Pressure Relief Valve (Chrome)

Alphacool's Eiszapfen (Icicle) fitting series is the high-end range of their proven fittings! With their high flow rate, precise shape, quality workmanship and intense colour, they fit perfectly into any system.

In normal systems, a normal reservoir acting as an expansion tank is usually sufficient to compensate for the pressures that occur. The components that are installed in a system are also pressure tested to at least 2 bar. But for users who have a lot of components in their loop, the extreme temperature difference between idle and operating mode can lead to very high pressures, and for some components it is advisable to release this pressure using a pressure relief valve.

This pressure relief valve can be easily screwed into any G1/4" connection and thus installed at any point in the loop. Some reservoirs, for example, have several openings where standard caps are used, so the valve can be inserted here. The G1/4" threaded connection is also very short, only 4mm, and allows for many other installation points in your loop. The seal attached to the underside offers additional security to keep your loop tight.

Technical data

• Material: nickel-plated brass Deep Black
• Connection: G1/4"
• Thread height: 4mm
• Height without thread: 16mm
• Outer diameter: 17mm
• Escaping pressure: 0.3-0.4kg/cm² at 4.3-5.7 psi (0.3-0.4 bar)

Warning

Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
