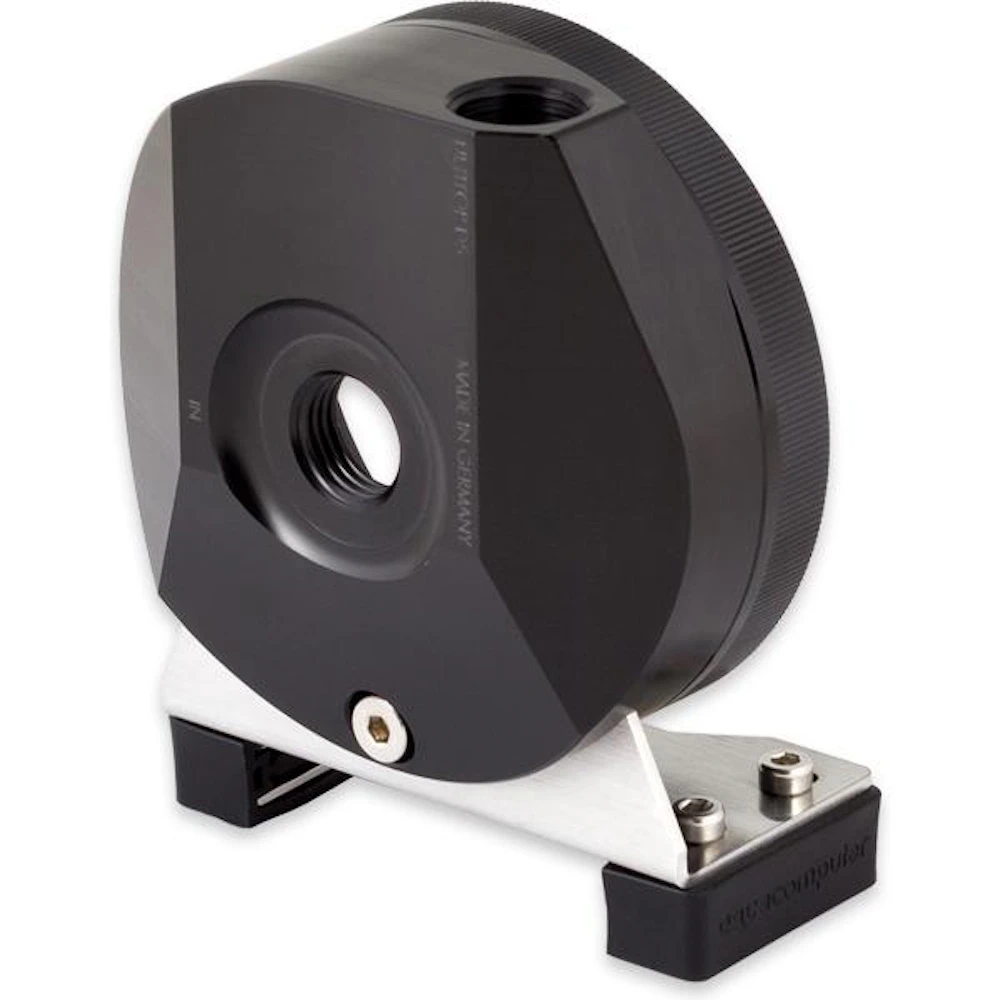

Aqua Computer ULTITOP D5 Pump Cover

Exceptionally compact top for D5 pumps, made from durable acetal. Main focus during development of the ULTITOP D5 were optimum flow characteristics, reducing noise and vibration to a bare minimum.

A fastening ring made from anodized aluminum and a gasket are supplied to attach a D5 pump (not included in delivery) to the ULTITOP. The mounting bracket is equipped with silicone decouplers specifically designed for the ULTITOP, effectively preventing remaining vibrations from being transmitted to the PC case. Stainless steel plates with M3 threads inserted into the decouplers ensure convenient installation. The bracket can be detached from the ULTITOP by removing a single screw for easy access to the pump.

Dimensions

• 72 x 72 x 34 mm without bracket/decouplers, without pump
• 72 x 86 x 44 mm with bracket/decouplers, without pump
• Connection threads: G1/4
• Recess around central connection thread: Diameter 22 mm, depth 3 mm (Connectors with larger outer diameter can only be installed with suitable extensions, not included in delivery)

Scope of delivery

• Pump adapter
• Pump fastening ring
• O-ring gasket
• Stainless steel bracket with silicone decouplers
• Mounting material

Compatible with

• Aqua Computer D5 pump motor with speed signal (art. no. 41091)
• Aqua Computer D5 pump motor with PWM input and speed signal (art. no. 41105)
• Aqua Computer D5-Pumpenmechanik mit USB- und aquabus Schnittstelle (art. no. 41093)
• Aqua Computer D5 NEXT (art. no. 41118)
• Laing D5 series pumps and OEM versions identical in construction

Please note

Pump and fittings are not included in delivery!
