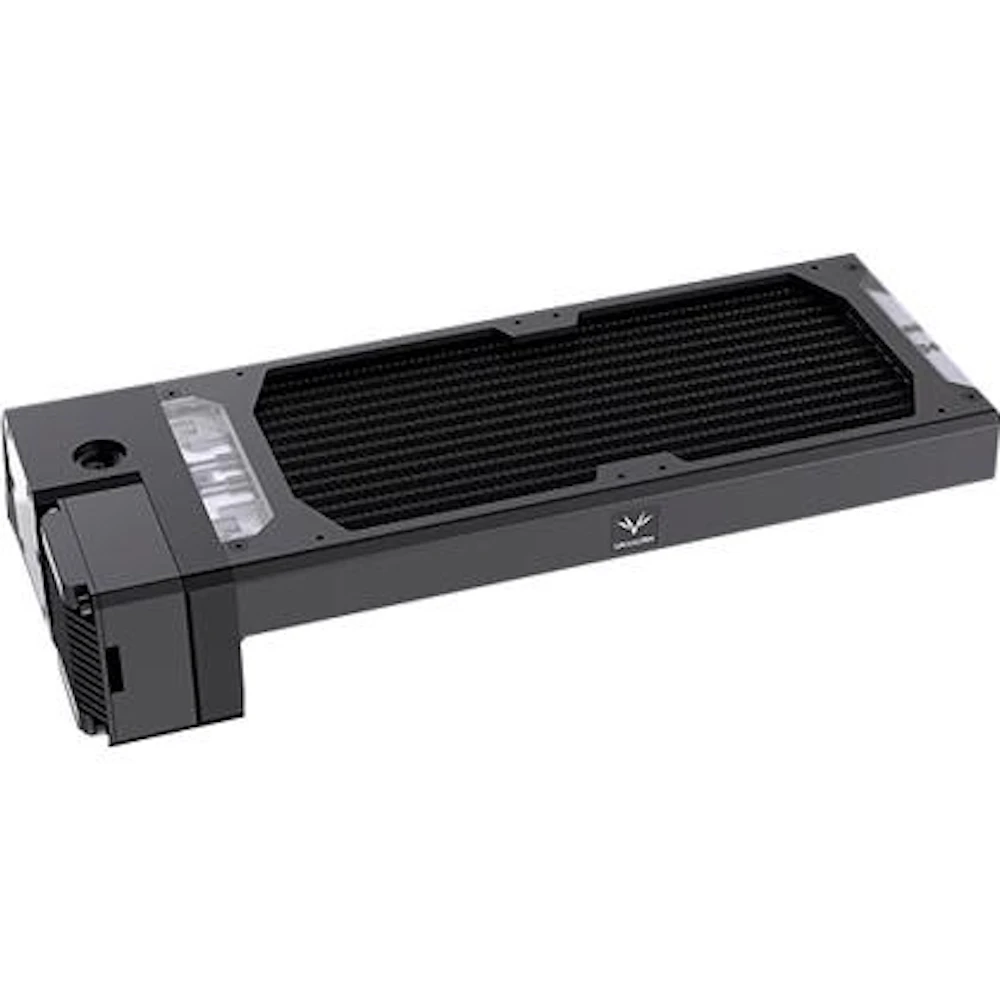

Bykski Granzon 240 x 30mm Pump Radiator Combo
Price$219
In stock at PLE
Price checked 2 days ago
Price history
Tracking since 2 days ago
The price hasn't changed since we started tracking it. We'll show its history once it does.
About this product
Granzon GH series radiators are designed as a modular radiator pump combo solution. The thickness of the radiator is 30mm which gives this radiator ultimate flexibility. The radiator sports 14 fins per inch and also has 14 channels. The bridge block allows the installation of a DDC Style pump onto the end of the radiator. Multiple ports are available for different loop configurations and opens up the possibility of a direct line in fillport connection.
Features
- Dual pass radiator designed for computer liquid cooling
- High liquid and air flow design
- Copper fin 16FPI spacing optimized for silent fans
- Copper tubes and Brass chambers
- Integrated 17W DDC style Pump
- Integrated Pump chamber, can be used as a small reservoir
- Perfect for all overclocking and silent projects
- Pump is 4-pin Molex powered, and 4-pin PWM controlled
- Can be used as the base for a custom AIO cooler, just select your CPU block and tubes!
Specifications
- Material: Copper fins, brass chambers
- Dimensions: 327.8 x 124.5 x 62mm
- Port Thread: G1/4
- Channels: 14
- Pressure: 0.32Bar
- Fin Density: 16FPI (Fins Per Inch)
- Pump Power: 4-pin Molex + 4-pin PWM
- Max speed: 1800 - 4800 RPM
- Max Flow: 6m / 700 LPH
Port Configuration
- A: Outlet
- B / E: Inlet to Res Chamber
- C / D: Inlet to Radiator
- F / G: Plug seal
Included Parts
- Granzon 120mm Radiator with 15w DDC Pump and Reservoir
- Allen key
- Blank plug set
- Mounting Screws for 25mm Fans
