Cisco Meraki Dual Band Patch Antenna

Brand:Cisco

Cisco Meraki Dual Band Patch Antenna

Last price$477.95

Last price at Mwaveseen yesterday

Not available at any store we track right now

We may earn a commission at no cost to you. How it works

Price history

Tracking resumed 29 Oct · 21 days

Now
$477.95
Recent low
$477.95
Earlier low · 2018
$367.98

Since tracking resumed · last 21 days

About this product

Brand
Cisco
Category
Electronics > Electronics Accessories > Antennas > Cellular & WiFi Antennas

Specifications

Colour
Patch

**PLEASE NOTE ALL CISCO MERAKI HARDWARE PURCHASES MUST BE MADE IN CONJUNCTION WITH A LICENSE PURCHASE OR A LICENSE MUST BE PROVIDED TO CUSTOMER SERVICE**

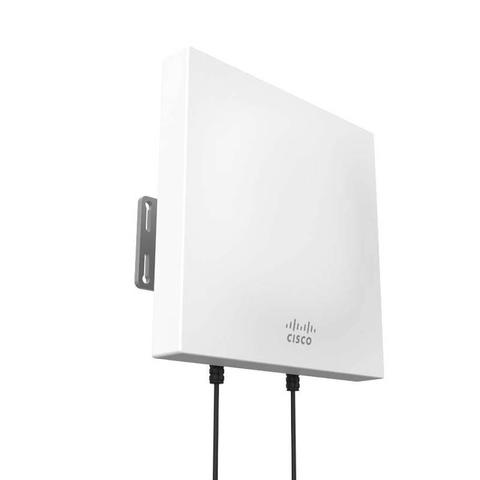

The Cisco Meraki MA-ANT-25 patch antenna is a 8 / 6.5 dBi, MIMO, dual–band 2.4 and 5 GHz antenna ideal for providing client coverage over focused areas or creating backhaul links. It is designed for use with Meraki APs that have N-type connectors.

FEATURES:

Extended Range
The directional antennas focus wireless signals in a particular direction by creating a co-polarization pattern. Typically, you’ll be able to extend the reach of a radio by up to 2.5x in a particular direction.

Easy to Mount
The antenna comes with everything you need for a pole or wall mount, and is suitable for indoor or outdoor use. 2 cables with N-Type connectors are integrated with the antenna.

Improved Connectivity
Cisco Meraki’s antenna accessories improve the reach and connectivity of a Cisco Meraki network by focusing and increasing signal strengths between MR66s, MR72s, and MR84s.

SPECIFICATIONS

Electrical

  • Antenna type: panel
  • Frequency range: 2.400 - 2.500 GHz, 5.150 – 5.850 GHz
  • Gain: 8 / 6.5 dBi
  • Polarization: vertical / horizontal
  • Half power bandwidth / horizontal: 70

Physical & Environmental

  • Dimensions: 7.1" x 7.1" x 1.6" (180 mm x 180 mm x 1.8 mm)
  • Weight: 1.1 lbs (512 g)
  • Material: UV resistant plastic
  • Temperature: -40 F to 158 F (-40 C to 70 C)
  • Connector: 2 x N-type

Mounting

  • Mounting hardware included
  • Mounts to walls or poles

Cables

  • Cables with two N-type connectors included

Regulatory

  • Certified for use with the MR66, MR72, and MR84

Warranty

  • 1 Year hardware warranty included

SIGNAL COVERAGE PATTERN:

Horizontal Port-1

Horizontal Port-2

Vertical Port-1

Vertical Port-2
