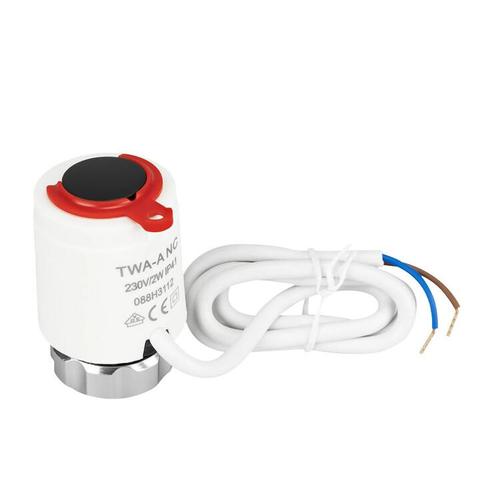

EARU RA060 AC230V Normally Closed NC M30*1.5mm Electric Thermal Actuator Underfloor Heating TRV Thermostatic Radiator Va

Specification Brand EARUModel RA060Rated Voltage AC 230VPower Consumption 2VA Max Current 250 mAThrust Force 110 NStroke 4 5 mmAction Time Approx 3 minutesConnection Size M30 1 5 mmCable Length 800 mmAmbient Temperature 5℃ 60℃Protection Grade IP41Shell Material PA66 G30Dimensions Ø36 mm 60 mmFeatures 1 Normally Closed NC Design Valve stays closed when power is off and opens automatically after energizing supports both NC and NO wiring methods as shown in the connection diagram 2 Standard M30 1 5 Thread Universally compatible with most underfloor heating manifold valves radiator valve bodies and thermostatic heads on the market 3 Energy SavingSilent Operation Only 2W power consumption driven by thermal expansion element works quietly without any noise disturbance 4 Strong Driving Force 110N thrust with 4 5mm stroke ensures reliable opening and closing of the valve body every time 5 SafeReliable IP41 protection grade and flame retardant PA66 G30 shell CE VDE certified for household heating systems 6 Easy Tool Free Installation Simply screw the actuator onto the valve body by hand then remove the red protective card after installation 800mm lead wire allows flexible wiring Package Include 1 TWA A NC Thermal Actuator Head
