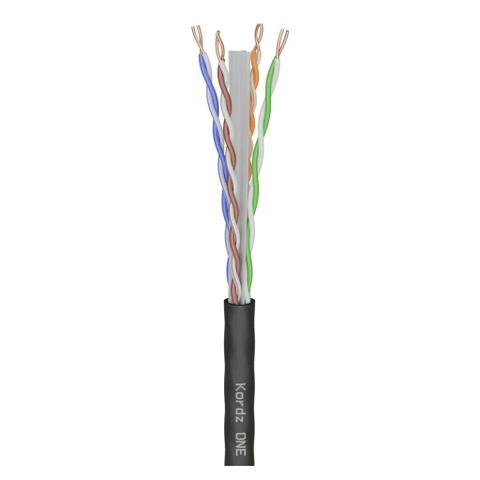

Kordz ONE CAT6 305m U/UTP UV Stabilised Outdoor Network Cable - Black

Brand:Kordz

Kordz ONE CAT6 305m Outdoor Ethernet Cable – Black

Price $579

At Mwave  In stock

Same price since 29 Oct

Unchanged since we started tracking

Price updated yesterday Price history

Buy at Mwave · $579

We may earn a commission at no cost to you. How it works

Price history

Tracking since 29 Oct · 23 days

The price hasn't changed since we started tracking it. We'll show its history once it does.

About this product

Brand
Kordz
Category
Electronics > Electronics Accessories > Cables > Network Cables > Ethernet Cables

Specifications

Colour
Black

Technical info

CONSTRUCTION

Conductor: 24AWG solid OFC 0.526 +0.02mm
Insulation: Polyethylene, 0.91±0.1 mm
Twisting: 4 twisted pairs of conductors
Twisted Pair Colour Code: 1: white-blue / blue 2: white-orange / orange, 3: white-green / green 4: white-brown / brown
Shielding: Unshielded (U/UTP)
Cable Lay-Up: Non-Metallic cross separator
Jacket Material: UV resistant Polyethylene-based composite
Outer Diameter: 5.4 +/-0.3 mm

MECHANICAL

Bend Radius: without load ≥ 21.6mm /0.85”, with load ≥ 43.2mm /1.70”
Temperature Range:
– During Operation:-20°C to 60ºC
– During Installation: 0°C to 50ºC

ELECTRICAL

DC Resistance: max. 9.38 Ω/100 m at 20°C
Resistance Unbalance: max. 5% at 20ºC
Insulation Resistance (500V): min. 5000 MΩ/Km at 20°C
Mutual Capacitance: max. 5.6 nf/100 m at 1 kHz
Capacitance Unbalance (Pair to Ground): max. 330 pf/100 m at 1 kHz
Nominal Velocity of Propagation: nom. 67% c
Test Voltage: 1kV DC / 1 min
