Technical info

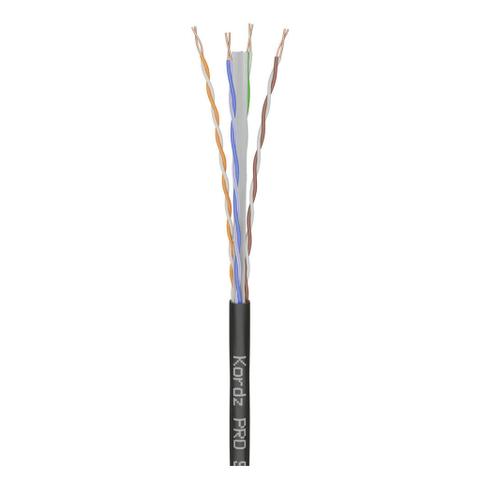

CONSTRUCTION
Conductor: 28AWG solid OFC 0.338 +0/-0.02mm
Insulation: Polyethylene, 0.61±0.1 mm
Twisting: 4 twisted pairs of conductors
Twisted Pair Colour Code: 1: white-blue / blue 2: white-orange / orange 3: white-green / green 4: white-brown / brown
Shielding: Unshielded (U/UTP)
Cable lay up: Non-Metallic cross separator
Jacket Material: UV resistant Polyethylene-based composite
Outer Diameter: 3.9 ± 0.5 mm
MECHANICAL
Minimum Bend Radius: Without load ≥ 16.0 mm; with load ≥ 32.0 mm
Temperature Range: During operation -20 °C to 60°C; During installation 0°C to 50°C
ELECTRICAL
DC Resistance: Max. 23.6 Ω/100 m at 20°C
Resistance Unbalance: Max. 5% at 20°C
Insulation Resistance (500V): Min. 5000 MΩ/km at 20°C
Mutual Capacitance: Max. 5.6 nf/100 m at 1 kHz
Capacitance Unbalance (Pair to ground): Max. 330 pf/100 m at 1 kHz
Nominal Velocity of Propagation: Nom. 67%
Test Voltage (DC, 1min): 1 kV / 1 min
