Noctua 8 Channel PWM Fan Hub (NV-FH2)

Brand:Noctua

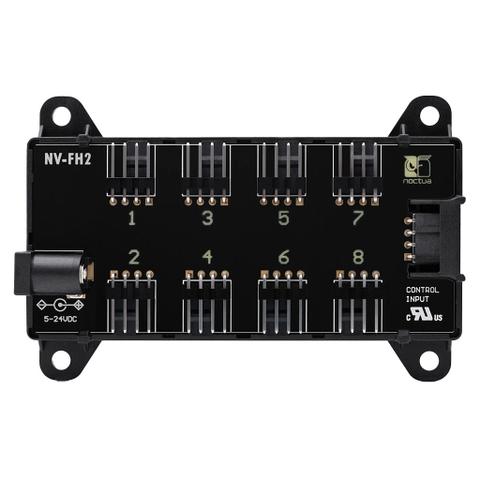

Noctua NV-FH2 8 Channel PWM Fan Hub

Price $99

Lowest available price  MSY, PC Byte, Mwave +3  In stock

MSY's price unchanged since 9 Nov

Unchanged since we started tracking

Price updated today Price history

Buy at MSY · $99

We may earn a commission at no cost to you. How it works

Price history

Tracking since 9 Nov · 12 days

The price hasn't changed since we started tracking it. We'll show its history once it does.

Available at 10 stores

Stores may pay us a commission when you buy; it doesn't affect the order or your price. Learn more

Prices at each store
RetailerPriceAvailabilityUpdated
$99In stock19 Nov
$99In stockYesterday
MSY
Cheapest $99In stockToday
$99In stockYesterday
$99In stockToday
$99In stock19 Nov
$109In stockYesterday
PLE
$109In stockYesterday
$109In stock17 Nov
$110In stockYesterday

About this product

Brand
Noctua
Category
Electronics > Electronics Accessories > Computer Components > Computer System Cooling Parts > Computer Case Fans

Specifications

Colour
Centre

The Noctua NV-FH2 8 Channel PWM Fan Hub is a fan hub with eight 4-pin PWM fan output ports, intended for powering and controlling several fans from one unit. It is designed for PC cooling as well as home ventilation and other setups.

The hub supports fans rated for 5V, 12V and 24V, and accepts both 4-pin PWM and 3-pin fan connectors. Power can be supplied through a 5.5mm barrel connector, for a total draw of up to 60W, or through the 4-pin PWM input, for up to 22W. If both inputs are connected, power is taken from the barrel connector and the 4-pin port is used only for PWM control and RPM monitoring. The hub can also be used with the optional NV-PS1 power supply, which supports 230V and 115V.

Installation uses integrated neodymium magnets that stick to steel surfaces, along with four 4.1mm screw holes for screws or cable ties on non-magnetic surfaces. A removable clip-on top cover is included. Fitted, it protects the board from dust, contact and mechanical impact and hides the white status LEDs; removed, the LEDs remain visible for monitoring fan status.

Key features

  • Eight 4-pin PWM fan output ports
  • Supports 5V, 12V and 24V fans, with 4-pin PWM and 3-pin connectors
  • Up to 60W total via barrel connector, or 22W via the 4-pin input
  • Magnetic mounting and screw holes
  • Removable top cover
  • Up to ten units can be cascaded to control up to 71 fans
  • CE, UKCA and UL certifications
  • Six-year manufacturer's warranty

Written with AI from store descriptions
