StarTech 7 Port USB 2.0 Hub - Metal/Industrial - Extended Temp/ESD

Brand:StarTech

StarTech 7 Port USB 2.0 Hub – Metal/Industrial, Extended Temp/ESD

Last price$386.95

Last price at Mwave seen yesterday

Not available at any store we track right now

We may earn a commission at no cost to you. How it works

Price history

Tracking since 29 Oct · 22 days

The price hasn't changed since we started tracking it. We'll show its history once it does.

About this product

Brand
StarTech
Category
Electronics > Electronics Accessories > Computer Components > USB & FireWire Hubs

Specifications

Colour
Metal/Industrial

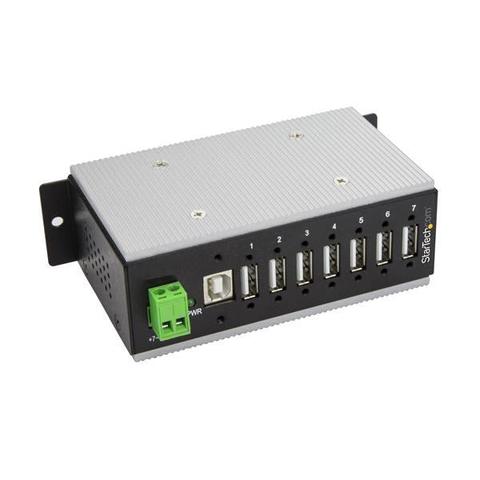

This TAA compliant 7-port industrial USB hub provides seven USB 2.0 ports to connect your devices. The USB 2.0 hub can be surface or DIN rail mounted, providing convenient USB connectivity in a work area, server room, or industrial environment.

Built for tough environments

The USB hub, with its rugged metal housing and IP30 protection rating, is built to meet the harsh demands of industrial environments. To keep connections secure and protect against accidental disconnections, the hub supports screw-locking cables. The 15kV ESD Protection (Level 4) reduces the risk of disruption caused by high static industrial environments, which can lead to costly service calls and downtime. To ensure maximum performance in areas with extreme temperature variances, the industrial USB hub provides an extended temperature range (-40°C - 85°C).

Flexible power options

The hub's wide-range 7-48V DC terminal block input gives you the flexibility to power the hub as required, based on your own power input capabilities.

Easy setup and use

For easy port access, the 7-port industrial USB hub can be surface or wall-mounted, and includes an optional DIN rail mount kit. The ports are plug-and-play making it easy to connect printers, cameras, sensors and other devices. Each port in the USB hub also features its own Transaction Translator (TT), to assist with load balancing and ensure each port can operate at peak performance.

The HB20A7AME is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Indicators
LED Indicators Power
Packaging Information
Package Height 55 mm [2.2 in]
Package Length 242 mm [9.5 in]
Package Width 166 mm [6.5 in]
Shipping (Package) Weight 628 g [22.2 oz]
Performance
Device Power Consumption (In Watts) 21 Watts
ESD Protection +/-15kV (Air)
+/-8kV (Contact)
Maximum Data Transfer Rate 480 Mbps
Surge Protection 350W on the DFP and UFP
Total Available Power Output (In Watts) 17.5 Watts
Type and Rate USB 2.0 - 480 Mbit/s
Physical Characteristics
Enclosure Type Metal
Form Factor Industrial
Product Height 42 mm [1.7 in]
Product Length 132 mm [5.2 in]
Product Width 63 mm [2.5 in]
Weight of Product 404 g [14.3 oz]
Power
Input Current 4A
Input Voltage 7 ~ 48 DC
Power Consumption (In Watts) 28 W
Power Source Terminal Block
Software
OS Compatibility OS independent; No software or drivers required
Special Notes / Requirements
System and Cable Requirements Any computer with a USB 2.0 port
What's in the Box
Included in Package 2 m [6.6 ft] USB-A to USB-B cable
DIN rail kit
instruction manual
USB 2.0 hub
Hardware
USB-C Host Connection No
Ports 7
Interface USB 2.0
Industry Standards USB 2.0
Chipset ID Genesys Logic - GL852GT
Bus Type USB 2.0
Environmental
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5 ~ 95% RH
Connector(s)
External Ports USB Type-A (4 pin) USB 2.0 Female
USB B (4 pin) Female
Terminal Block (3 Wire)
