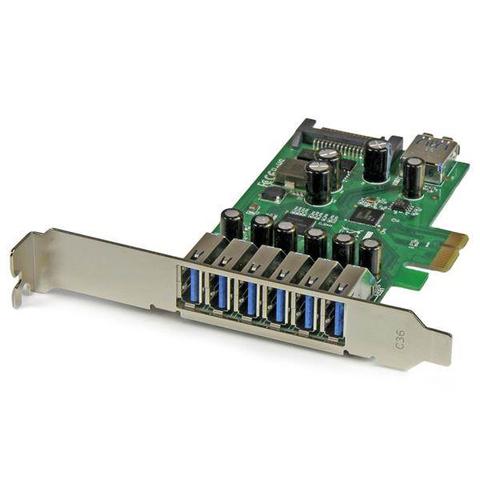

StarTech 7 Port USB 3.0 PCIe Low Profile Adapter Card

Brand:StarTech

StarTech 7 Port USB 3.0 PCIe Low Profile Adapter Card

Last price$124.95

Last price at Mwave seen 11 Nov

Not available at any store we track right now

We may earn a commission at no cost to you. How it works

Price history

Tracking since 29 Oct · 22 days

The price hasn't changed since we started tracking it. We'll show its history once it does.

About this product

Brand
StarTech
Category
Electronics > Electronics Accessories > Computer Components > I/O Cards & Adapters > Computer Interface Cards & Adapters > USB Expansion Cards & Adapters

Handle your workload more efficiently. This USB 3.0 card expands your computer’s capabilities by giving you seven extra USB 3.0 ports. It’s engineered with an innovative stacked port layout to fit easily into both low-profile and standard desktop computers.

Greater port count. Greater scalability.

More ports means you can add USB devices as you need them. This robust USB 3.0 card gives you seven USB 3.0 ports - six external and one internal - so you can plug in your tablets, smartphones, external hard drives, CD/DVD drives, printer and other devices at the same time. With so many extra ports, you can leave your devices plugged in, so they’re ready to use when you need them. It’s also economical - by being able to connect so many devices, you save the cost of extra hubs or cards.

The internal USB 3.0 port lets you connect a USB device inside your computer for added convenience and security.

Unique dual-profile design

This versatile USB 3.0 card features a dual-profile design with a stacked port layout. The innovative port configuration allows a high number of external ports in a compact design, allowing it to fit both low-profile and full desktop computer systems. A bracket is included for installation into low-profile computers.

Easy driver installation

You'll be up and running in no time. The card automatically installs in Windows® 8.1 or later, with native operating system support. It’s also backward compatible with USB 2.0 and 1.x devices to help you get the most out of your existing peripherals.

Effective USB 3.0 performance enhanced by UASP

This high-performance SuperSpeed USB 3.0 card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.0, when paired with a UASP-enabled enclosure.

UASP speed benefit diagram

The rugged build quality of the card delivers long-lasting performance, and gives you peace of mind when connecting multiple devices. The PEXUSB3S7 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Note: UASP (USB Attached SCSI Protocol) is supported in Windows 8.1 or later, and Linux kernel 2.6.37 or later. Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.

Hardware
Port Style Integrated on Card
Ports 7
Packaging Information
Shipping (Package) Weight 150 g [5.3 oz]
Performance
Maximum Cable Length 3 m [9.8 ft]
Maximum Data Transfer Rate 5 Gbps
MTBF 1,920,042 Hours
Type and Rate USB 3.0 - 5 Gbit/s
UASP Support Yes
Physical Characteristics
Product Height 120 mm [4.7 in]
Product Length 105 mm [4.1 in]
Product Weight 72 g [2.5 oz]
Product Width 15 mm [0.6 in]
Software
OS Compatibility Windows® XP, Vista, 7, 8, 8.1, 10
Windows Server® 2008 R2, 2012, 2012 R2, 2016
Linux 2.6.31 to 4.11.x LTS Versions only
Special Notes / Requirements
Note The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps.
System and Cable Requirements PCI Express enabled computer or server with an available PCI Express x1 slot or higher (x4, x8, x16)
SATA power connector (recommended, but optional)
What's in the Box
Included in Package 7 Port PCI Express USB 3.0 Card
Driver CD
Instruction Manual
Low-Profile Bracket
Hardware
Interface USB 3.0
Industry Standards USB 3.0 Specification Rev. 1.0
PCI Express Base Specification Rev. 2.0
Intel xHCI Specification Rev. 1.0
Chipset ID Renesas/NEC - µPD720201
µPD720210
Card Type Standard Profile (LP bracket incl.)
Bus Type PCI Express
Environmental
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Operating Temperature 5°C to 50°C (41°F to 122°F)
Humidity 20~80% RH
Connector(s)
Internal Ports USB Type-A (9 pin) USB 3.0 Female
SATA Power (15 pin) Plug
External Ports USB Type-A (9 pin) USB 3.0 Female
Connector Type(s) PCI Express x1 Male
