StarTech HPE JD094B Compatible SFP+ - 10GbE SMF Transceiver - 10km DDM

Brand:StarTech

StarTech HPE JD094B Compatible SFP+ 10GbE SMF Transceiver – 10km DDM

Last price$124.95

Last price at Mwave seen today

Not available at any store we track right now

We may earn a commission at no cost to you. How it works

Price history

Tracking since 29 Oct · 22 days

The price hasn't changed since we started tracking it. We'll show its history once it does.

About this product

Brand
StarTech
Category
Electronics > Networking > Repeaters & Transceivers > Fiber Optic Transceiver Modules

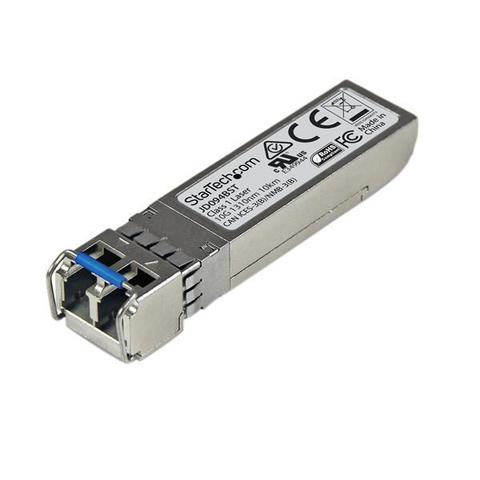

The JD094BST is an HP JD094B compatible fiber transceiver module that has been designed, programmed and tested to work with HP® brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

  • Wavelength: 1310 nm
  • Maximum Data Transfer Rate: 11.1 Gbps
  • Type: Single Mode Fiber
  • Connection Type: LC Connector
  • Maximum Transfer Distance: 10 km (6.2 mi)
  • MTBF: 2,104,865 hours
  • Power Consumption: Less than 1.2 Watts
  • Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Connector(s)
Local Unit Connectors Fiber Optic LC Duplex Female
Environmental
Humidity 5~95% RH
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Hardware
Compatible Brand HP
Industry Standards IEEE 802.3ae 10GBASE-LR
Packaging Information
Package Height 33 mm [1.3 in]
Package Length 92 mm [3.6 in]
Package Width 119 mm [4.7 in]
Shipping (Package) Weight 49 g [1.7 oz]
Performance
Compatible Networks 10 Gbps
DDM Yes
Fiber Operating Mode Full-Duplex
Max Transfer Distance 10 km (6.2 mi)
Maximum Data Transfer Rate 10 Gbps
MTBF 2,104,865 hours
Type Single Mode
Wavelength 1310nm
Physical Characteristics
Color Silver
Enclosure Type Aluminum
Product Height 12.6 mm [0.5 in]
Product Length 58.4 mm [2.3 in]
Product Width 13.9 mm [0.5 in]
Weight of Product 20 g [0.7 oz]
Power
Power Consumption (In Watts) < 1.2 W
Prominence
Description CDW 75 - 1st Line StarTech.com HP JD094B Compatible SFP+ Module
Special Notes / Requirements
Note For use in 10 Gigabit fiber networking equipment and media converters
System and Cable Requirements MSA or HP compliant SFP port
What's in the Box
Included in Package SFP+ transceiver
