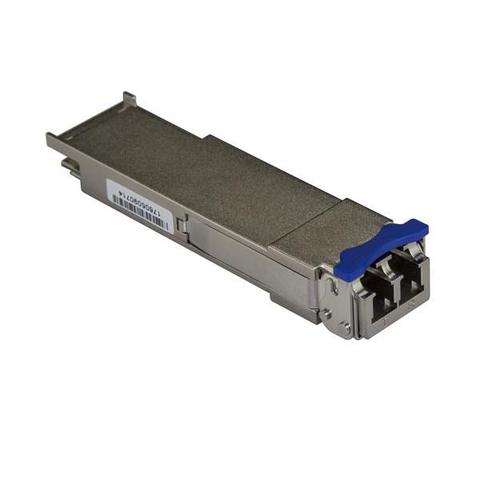

StarTech MSA Uncoded QSFP+ - 40GbE SMF Transceiver Module - 10km DDM

Brand:StarTech

StarTech MSA Uncoded QSFP+ 40GbE SMF Transceiver Module – 10km DDM

Last price$275.95

Last price at Mwaveseen yesterday

Not available at any store we track right now

We may earn a commission at no cost to you. How it works

Price history

Tracking since 29 Oct · 21 days

The price hasn't changed since we started tracking it. We'll show its history once it does.

About this product

Brand
StarTech
Category
Electronics > Networking > Repeaters & Transceivers > Fiber Optic Transceiver Modules

The QSFP40LR4ST is an MSA compliant fiber QSFP+ transceiver that's designed, programmed and tested to work with 40GBASE-LR4 compatible MSA switches and routers. The QSFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 40 GbE connectivity over fiber cabling.

Technical Specifications:

  • Wavelength: 1270nm to 1330nm
  • Maximum Data Transfer Rate: 40 Gbps
  • Type: Single Mode Fiber
  • Connection Type: LC Connector
  • Maximum Transfer Distance: 10 km (6.2 mi)
  • MTBF: 1,489,426 hours
  • Power Consumption: Less than 2.5 Watts
  • DDM: Yes

This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

Performance
Fiber Operating Mode Full-Duplex
Max Transfer Distance 10 km (6.2 mi)
Maximum Data Transfer Rate 40 Gbps
MTBF 1,489,426 hours
Type Single Mode
Wavelength 1270nm to 1330nm
Physical Characteristics
Color Silver
Enclosure Type Aluminum
Product Height 13 mm [0.5 in]
Product Length 72 mm [2.8 in]
Product Width 18.4 mm [0.7 in]
Weight of Product 40 g [1.4 oz]
Power
Power Consumption (In Watts) < 2.5 W
Prominence
Description CDW 75 - 1st Line StarTech.com 40GBASE-LR4 Fiber QSFP+ Module
What's in the Box
Included in Package QSFP+ transceiver
Performance
DDM Yes
Compatible Networks 40 Gbps
Packaging Information
Shipping (Package) Weight 76 g [2.7 oz]
Package Width 92 mm [3.6 in]
Package Length 117 mm [4.6 in]
Package Height 32 mm [1.3 in]
Hardware
Industry Standards IEEE 802.3ba 40GBASE-LR4
Compatible Brand MSA Compliant
Environmental
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Temperature 0°C to 70°C (32°F to 158°F)
Humidity 5~95% RH
Connector(s)
Local Unit Connectors Fiber Optic LC Duplex Female
