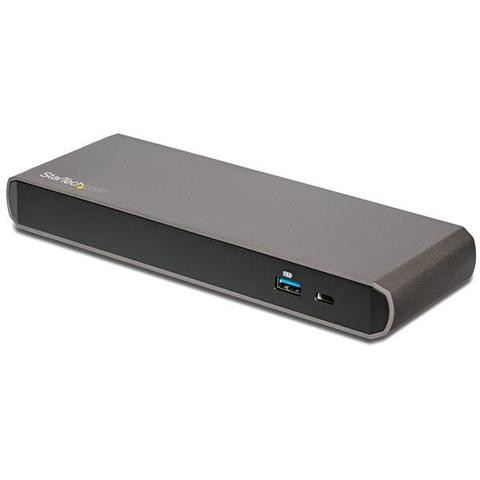

StarTech Thunderbolt 3 Dock - Dual 4K 60Hz DP Docking Station - 85W PD

Brand:StarTech

StarTech Thunderbolt 3 Dock - Dual 4K 60Hz DP Docking Station - 85W PD

Last price$472

Last price at Mwave seen yesterday

Not available at any store we track right now

We may earn a commission at no cost to you. How it works

Price history

Tracking since 29 Oct · 22 days

The price hasn't changed since we started tracking it. We'll show its history once it does.

About this product

Brand
StarTech
Category
Electronics > Electronics Accessories > Computer Accessories > Laptop Docking Stations

Easily transform your Thunderbolt 3™ equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality TB3 dock features three USB 3.0 ports, 85W Power Delivery to charge your laptop.

Create a Dual-4K Workstation

Great for video editing and other Ultra HD tasks, this dual-4K monitor docking station supports 40Gbps speeds and 4K resolution on two monitors. Run resource-demanding applications on two independent displays, without draining system resources.

Connect your laptop to:

  • 1 x 4K monitor via the DP Port
  • 1 x 4K monitor via the TB3 USB-C Port (1.8 m cable included)

OR

  • 1 x 5K monitor via the DP & TB3 USB-C port

Easy Installation & Deployment

Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.

Connect your Devices

With three USB 3.0 ports, the Thunderbolt 3 docking station gives you plenty of ports for the latest and legacy devices. Connect USB devices like flash drives using the two Type-A ports. Keep your mobile device charged with the dock’s Fast-Charge and sync port. Connect a USB-C device with the USB-C port (5Gbps - data only).

Plenty of Charging Power

The Thunderbolt 3 docking station features a 170W power adapter supporting Power Delivery to power and charge (up to 85W) your laptop, while powering all your devices connected to the dock. This eliminates the need to use two separate power adapters for your laptop and dock.

TB3DK2DPPD features a rugged aluminum casing and is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Hardware
Chipset ID Intel - Alpine Ridge DSL6540
Fresco - FL1100EX
Texas Instruments - PCM2912A
Intel - WGI210AT
Texas Instruments - TPS65983
Displays Supported 2
Fast-Charge Port(s) Yes
Industry Standards Thunderbolt 3
USB Battery Charging Specification Rev. 1.2
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Packaging Information
Package Height 88 mm [3.5 in]
Package Length 24.8 cm [9.8 in]
Package Width 14.8 cm [5.8 in]
Shipping (Package) Weight 1.5 kg [3.3 lb]
Performance
Auto MDIX Yes
Compatible Networks 10/100/1000 Mbps
Full Duplex Support Yes
Maximum Data Transfer Rate 40 Gbps (Thunderbolt 3)
10 Gbps (USB 3.1 Gen 2)
5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions Single display - DisplayPort - 4096 x 2160p / 3840 x 2160p
Single Display - Thunderbolt 3 USB-C - 4096 x 2160p / 3840 x 2160p
Dual displays - DisplayPort 4096 x 2160p / 3840 x 2160p and Thunderbolt 3 USB-C - 4096 x 2160p / 3840 x 2160p
Type and Rate Thunderbolt 3 - 40 Gbit/s
UASP Support Yes
Physical Characteristics
Cable Length 520 mm [20.5 in]
Color Gray and Black
Enclosure Type Aluminum and Plastic
Product Height 2.7 cm [1.1 in]
Product Length 22 cm [8.7 in]
Product Width 80 mm [3.1 in]
Weight of Product 450 g [15.9 oz]
Power
Input Current 2.5 A
Input Voltage 100 - 240 AC
Output Current 8.5 A
Output Voltage 20V DC
Plug Type CP (OD:7.4/ID:5.1/CPD:0.6)
Power Consumption (In Watts) 170
Power Delivery 85W
Power Source AC Adapter Included
Prominence
Description CDW 75 - 1st Line StarTech.com Thunderbolt 3 Dock - Dual 4k - MacBook Pro & Windows - 85W PD
Software
OS Compatibility Windows® 7, 8, 8.1, 10
macOS 10.12 - 10.14
Special Notes / Requirements
Note A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
Hardware
Bus Type Thunderbolt 3
4K Support Yes
Environmental
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Temperature 5°C to 40°C (41°F to 104°F)
Humidity 5~95% RH (Non-condensing)
Connector(s)
Connector Type(s) USB Type-C (24 pin) USB 3.0 (5Gbps) Female
USB Type-A (9 pin) USB 3.0 Female
USB 3.0 A (Fast-Charge, 9 pin) Female
Thunderbolt™ 3 USB-C (24-pin) (40Gbps) Female
RJ-45 Female
DisplayPort (20 pin) Female
3.5 mm Mini-Jack (3 Position) Female
Special Notes / Requirements
Note Certain monitors may be limited to 4K at 30Hz when connecting through DisplayPort. These monitors include the following models: Dell P2715Q, Viewsonic VX2475Smhl-4K, Philips 288P6LJEB, LG 31MU97C-B, Asus PB287Q (these models will need to be set to 4K at 30Hz).
USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. USB 3.1 Gen 2 offers speeds up to 10Gbps.
When connecting a display to one of the Thunderbolt 3 USB-C ports, a USB-C video adapter might be required depending on the input of your display.
System and Cable Requirements Thunderbolt 3 equipped computer with a Thunderbolt 3 port.
Your laptop's Thunderbolt 3 port must support USB Power Delivery 2.0 in order to power and charge your laptop.
What's in the Box
Included in Package 1.7 ft. [520 mm] Thunderbolt 3 cable
6 ft. [1.8 m] USB-C to DP cable
docking station
instruction manual
power cords (NA/JP, ANZ)
universal power adapter
