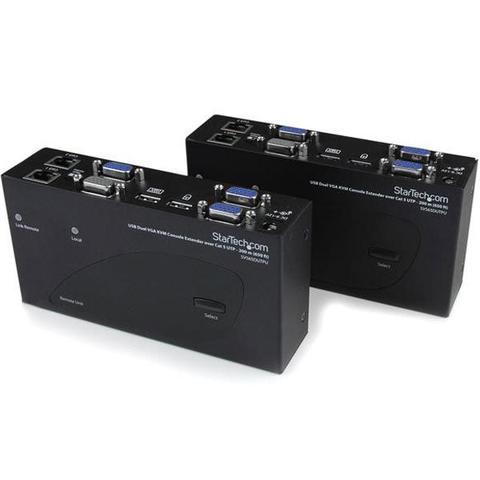

StarTech USB Dual VGA over Cat5 KVM Console Extender

Brand:StarTech

StarTech USB Dual VGA over Cat5 KVM Console Extender

Price $803.95

At Mwave In stock

Same price since 29 Oct

Unchanged since we started tracking

Price updated yesterday Price history

Buy at Mwave · $803.95

We may earn a commission at no cost to you. How it works

Price history

Tracking resumed 29 Oct · 21 days

Now
$803.95
Recent low
$803.95
Earlier low · 2018
$778

Since tracking resumed · last 21 days

About this product

Brand
StarTech
Category
Electronics > Electronics Accessories > Cables > KVM Cables

The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution.

The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Connector(s)
Console Interface(s) USB Type-A (4 pin) USB 2.0 Female
VGA (15 pin, High Density D-Sub) Female
Host Connectors VGA (15 pin, High Density D-Sub) Female
Other Interface(s) RJ-45 Female
Environmental
Humidity 0~80% RH
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 60°C (14°F to 140°F)
Hardware
Audio No
Cables Included Yes
KVM Ports 2
Number of Monitors Supported 2
PC Interface USB
PC Video Type VGA
Rack-Mountable No
Packaging Information
Shipping (Package) Weight 2.3 kg [5 lb]
Performance
IP Control No
Max Transfer Distance 200 m (656 ft)
Maximum Analog Resolutions 1920x1200
MTBF 65,000 hrs
Supported Resolutions 1920x1200 @ 650 ft (200m)
Physical Characteristics
Color Black
Enclosure Type Steel
Product Height 40 mm [1.6 in]
Product Length 155 mm [6.1 in]
Product Weight 535 g [18.9 oz]
Product Width 80 mm [3.1 in]
Power
Center Tip Polarity Positive
Input Current 0.2A
Input Voltage 110V-240V AC
Output Current 0.6A
Output Voltage 9 DC
Plug Type M
Power Consumption (In Watts) 5.4
Power Source AC Adapter Included
Software
OS Compatibility OS independent; No software or drivers required
Special Notes / Requirements
Note Product weights/measurements and connector types indicate a single unit only (either Host or Remote)
What's in the Box
Included in Package 6 ft 2-in-1 USB VGA KVM cables
instruction manual
local unit
remote unit
rubber feet
universal power adapter (NA/EU/UK/AU)
