StarTech VGAVideo Extender Over Cat 5 With Audio

Brand:StarTech

StarTech VGAVideo VGA Video Extender Over Cat 5 With Audio

Last price$255.95

Last price at Mwave seen yesterday

Not available at any store we track right now

We may earn a commission at no cost to you. How it works

Price history

Tracking resumed 29 Oct · 22 days

Now
$255.95
Recent low
$255.95
Earlier low · 2017
$234.98

Since tracking resumed · last 22 days

About this product

Brand
StarTech
Category
Electronics > Electronics Accessories > Cables > Audio & Video Cables > VGA Cables

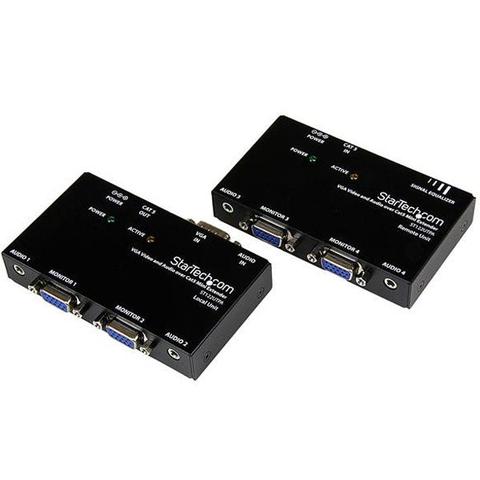

The ST122UTPA VGA Video Extender over Cat 5 with Audio allows up to 4 (2 local and 2 remote) monitors to be connected to a single PC. The video signal and corresponding audio are sent to the remote unit over standard 4 pair Category 5 or better (Cat 5e recommended) UTP cable, supporting extended video distances of up to 150m / 500ft.

The VGA video and audio extender includes a local transmitter and a remote receiver, providing an out-of-the box solution that's perfect for point to point digital signage applications that require audio. To simplify installation, this kit also includes a mounting bracket for the ST122UTPA receiver to install onto walls, desks or cabinets for a tidy setup.

This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

Connector(s)
Local Unit Connectors 3.5 mm Mini-Jack (3 Position) Female
RJ-45 Female
VGA (15 pin, High Density D-Sub) Female
VGA (15 pin, High Density D-Sub) Male
Remote Unit Connectors 3.5 mm Mini-Jack (3 Position) Female
RJ-45 Female
VGA (15 pin, High Density D-Sub) Female
Hardware
Audio Yes
Cabling Cat 5e UTP or better
Daisy-Chain No
Ports 2
Packaging Information
Shipping (Package) Weight 1.2 kg [2.7 lb]
Performance
Max Distance 150 m / 500 ft
Maximum Cable Length 152.4 m [500 ft]
Supported Resolutions 1440x900 @ 150ft / 50m
1280x1024 @ 300ft / 100m
1024x768 @ 500ft / 150m
Physical Characteristics
Color Black
Enclosure Type Aluminum
Product Height 20 mm [0.8 in]
Product Length 60 mm [2.4 in]
Product Weight 181 g [6.4 oz]
Product Width 83 mm [3.3 in]
Power
Center Tip Polarity Positive
Output Current 0.5A
Output Voltage 12 DC
Power Consumption (In Watts) 6
Power Source AC Adapter Included
What's in the Box
Included in Package Instruction Manual
Local VGA Extender Unit
Mounting Bracket Kit (w/ screws)
Power Adapter
Remote VGA Extender Unit
Sets Rubber Feet
