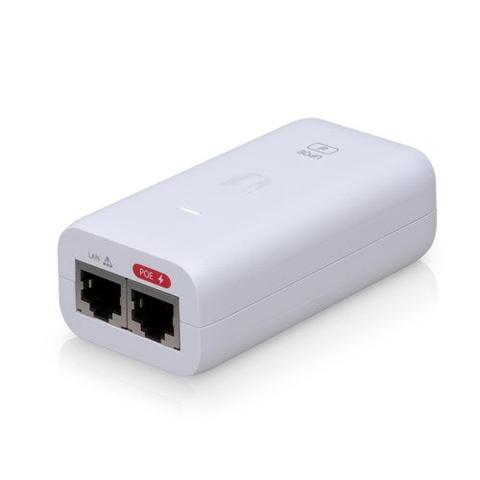

Ubiquiti Networks 802.3AF, 48VDC-0.32A Gigabit PoE Adapter - White

Brand:Ubiquiti Networks

Ubiquiti Networks 802.3AF, 48VDC-0.32A Gigabit PoE Adapter - White

Price $19 was$25 Price dropped24%

At Mwave  In stock

Lowest tracked price

Down from $25 on 9 NovTracking since 29 Oct

Price updated yesterday Price history

Buy at Mwave · $19

We may earn a commission at no cost to you. How it works

Price history

Tracking since 29 Oct · 23 days

Now
$19
Lowest
$19
Highest
$25
Price changes
  1. down↓24% 9 Nov $19
  2. First recorded 29 Oct $25

About this product

Category
Electronics > Networking > Power Over Ethernet Adapters > Power Over Ethernet Injectors

Specifications

Colour
White
Dimensions 86 x 46 x 33 mm
(3.39 x 1.81 x 1.30")
Weight 100 g
(3.53 oz)
Output Voltage 48VDC @ 0.32A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability Yes
Reset Button No
Rated Voltage 100-240VAC @ 50/60Hz
Input Current 500mA @ 90VAC
Inrush Current <100A Peak @ 25°C
Efficiency 0.8425
Output Ripple 200mV p-p
Switching Frequency 65 kHz
Line Regulation ≤ 3%
Load Regulation ≤ 5%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering –
Operating Temperature 0 to 40° C
(32 to 104° F)
Storage Temperature -30 to 70°C
(-22 to 158° F)
Operating Humidity 5 to 90% Noncondensing
AC Connector IEC-320 C6
Data IN / POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 μs) Power
Peak Pulse Current 36A (10/1000 μs) Data
Shunt Capacitance <5 pF data
Response Time <1 ns
Certifications CE, FCC, IC, UL
